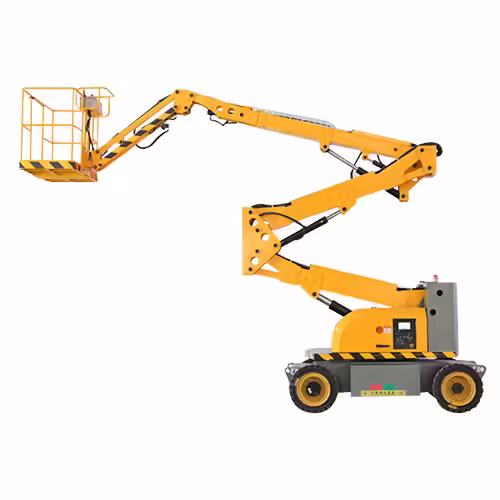

This product is easy to operate, convenient to use, has a large working surface, and can be used for overhanging operations, crossing certain obstacles or lifting in one place, and can perform large-scale multi-point lifting operations, greatly improving work efficiency.
| Model | Maximum operating height (M) | Maximum operating radius (M) | Swivel height (°) | Platform load (KG) |
Platform speed (M/S) |
Overall dimensions (length*width*height)MM |
Working pressure (MPa) |
Machine weight (KG) |
Walking speed (KM/h) |
Wind resistance |
| GTZ-6 | 7.7 | 1.5 | 360° | 160 | 0.04*0.07 | 2300*880*2020 | 8 | 500 | 15-20 | ≤Level 5 |
| GTZ-8 | 9.7 | 2.2 | 360° | 200 | 0.04*0.07 | 2800*1200*2450 | 8 | 700 | 15-20 | ≤Level 5 |
| GKT-10.5 | 10.5 | 3.4 | 360° | 160 | 0.05*0.09 | 3500*1700*2900 | 10 | 1600 | 15-30 | ≤Level 5 |
| GKT-12 | 12 | 3.4 | 360° | 160 | 0.05*0.09 | 3800*1900*2900 | 10 | 1900 | 15-30 | ≤Level 5 |
| GKT-13 | 13 | 4 | 360° | 160 | 0.05*0.09 | 3900*1950*3000 | 10 | 2000 | 15-30 | ≤Level 5 |
Need a custom lift solution or have a project in mind? Our team is ready to assist.
From private villas to airports, hotels, factories, and commercial buildings—our lift platforms are trusted for accessibility, maintenance, and logistics. We also serve special needs for elderly, disabled individuals, and children, offering safe vertical mobility for all.
